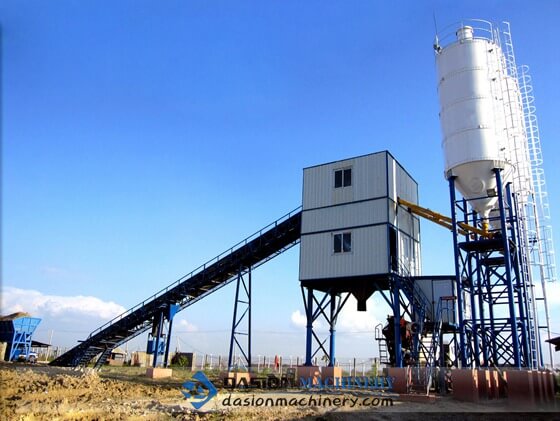

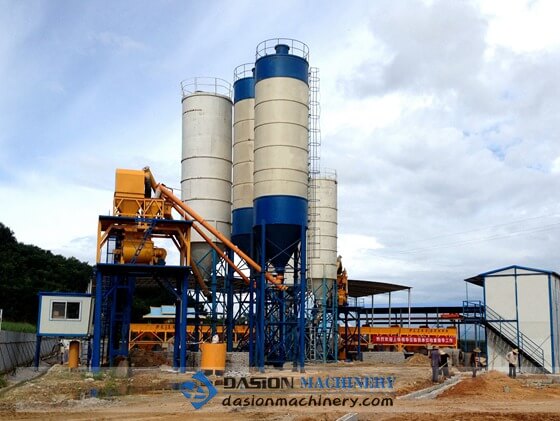

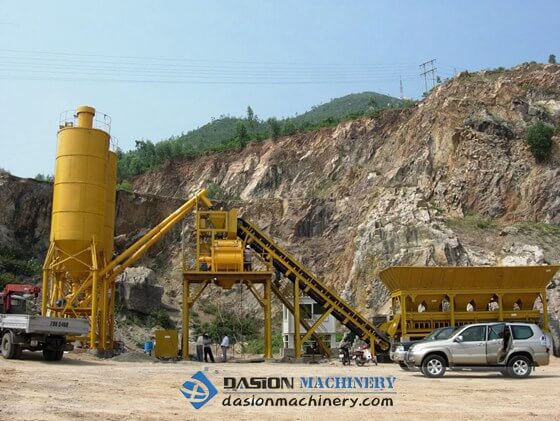

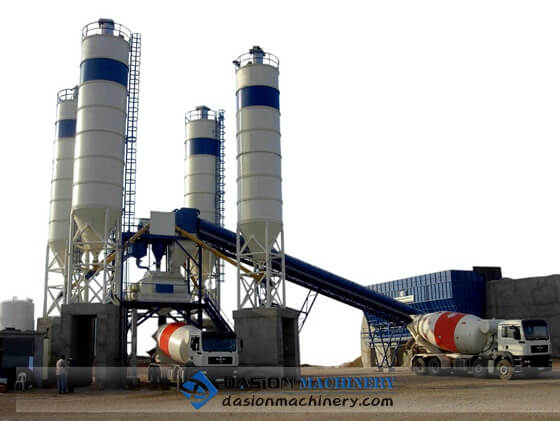

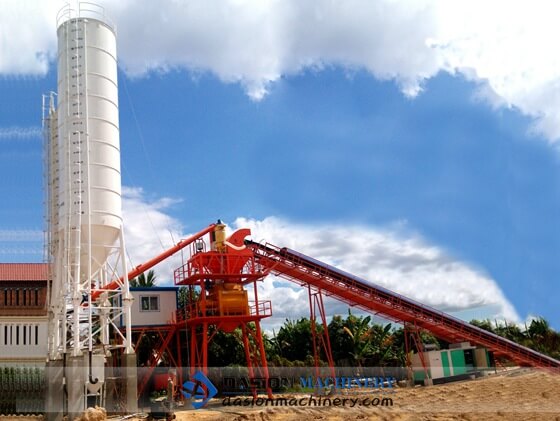

    HZS60 Concrete Batching Plant
    Equipment Type : Belt Feeding
    Model : HZS60 concrete plant
    Productivity : 60 m3/hr
    Warranty : 12 months
    Origin : DASION/CHINA
    After-sale service : Erection & commissioning, operator training
    Share with:
    Product Parameter
    Product Features
    Engineering Case
    Product Video
    Technical Parameters Of HZS60 Concrete Batching Plant

    Model HZS60
    Capacity 60m3/h
    Mixing system Twin-shaft concrete mixer
    Aggregate feeder Belt conveyor
    Discharging height 3800mm
    After-sale service Erection & commissioning, operator training
    Warranty 12 months after erection
    Concrete mixer YJS1000/ SICOMA 1000
    Mixing cycle ≦60s
    Aggregate batching machine PLD1600
    Weighing system Water, Cement, Fly-ash, Additive
    Weighing precision ±1%
    Air system Air compressor, etc
    Control system Type Computer auto-control module with PLC
    Control panel board Buttons, lamps, indicators, CCTV, etc.
    Electric components China CHINT, German SCHNEIDER (option)
    Control room With Air conditioner, ≈10m2
    Documentation Foundation layout, Electrical diagram, Operation manual, Spare parts list


    Brief Introduction Of HZS60 Concrete Batching Plants

    DASION HZS60 concrete Mixing plant (60m3/h) consists of material batching, mixing and electric control system. DASION assemble high performance separated control room, which includes control panel, power cabinet, air conditioner, Printer, etc. That will make the plant operation easily, safe and speedy, but also produce high quality concrete because of more accurate material measurement.
    DASION ready mix concrete batching plant is widely used in big and medium construction projects, road, bridge project, and concrete prefabrication factory.
    It can well mix dry concrete, semi-dry concrete, plastic concrete (etc) in certain time.




    Features And Benefits Of HZS60 Concrete Mixing Plant:
    0
    Mixing system choose twin-shaft forced concrete mixer, which has high efficiency and good mixing quality, scale board and mixing blades adopts high-rigidity and high tenacity wearable alloy steel, to prolong the working life.
    0
    Scale components of measurement system are all from famous brand, computer controlled to ensure the weighing accurate and reliable performance, so that it can also meet the requirement of every high performance good concrete.
    0
    Aggregate feeding system adopts Belt Conveyor, can be assembled rainproof and tighten device for belt. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
    0
    Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.
    0
    Control system ensures the high simple and reliability, human-based intelligent control facilitates the continuously producing, but with dynamic display panel to make the operator clearly know the operation of each part.
    0
    Assemble sidewalk and ladders for every maintenance and service part, assemble high-pressure water flushing device for concrete mixer clean, good maintainability.
    0
    All of powder material is feeding, batching, unloading, mixing in closed space., reduce the pollution to environment. Assemble dust-remover in main mixing building, and also pack the mixing building and belt conveyor.
    Working Principle Of HZS60 Concrete Batching Plants:
    0
    Turn on control software, login to operation interface;
    0
    Set or access working parameters of concrete production, such as recipe number, concrete grade, slump, total production volume, etc.
    0
    Start production;
    0
    The software/PLC will give signal to each part of the plant, to finish the material feeding, measurement, loading into the concrete mixer, mixing and discharging;
    0
    If there are some problems during production, the software will detect the error and light up alarm lamp on computer screen or indicator display, so that the operator can stop the production till problems solved.
    0
    Regarding to the material feeding, the various of electric motors, butterfly valves and load cells will work automatically according to digital signal;
    0
    High-pressure air system will provide enough driving force for each unloading gates, such as aggregate bins, butterfly valve of scale hoppers, concrete mixer discharging gate, etc.
    0
    The software will control the whole system continuously produce concrete till the set-volume finished production, unless emergency stop or turn to Manual style.
