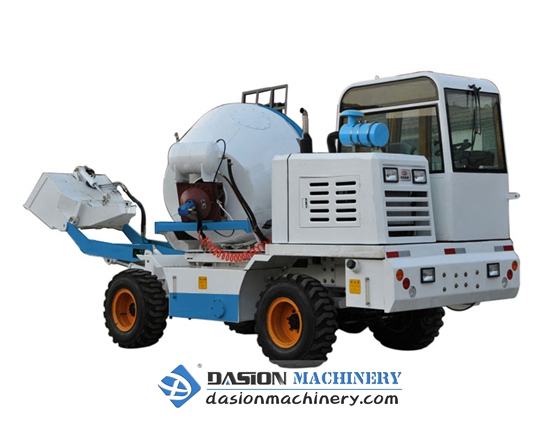

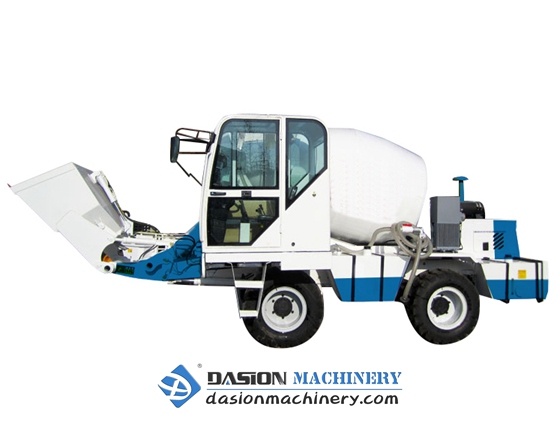

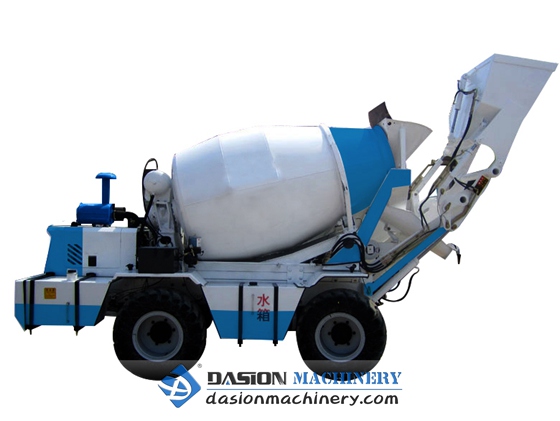

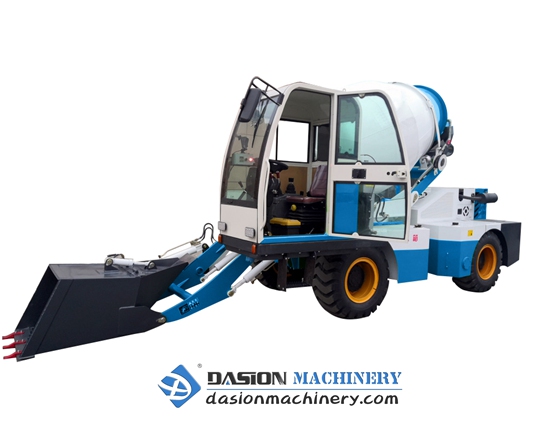

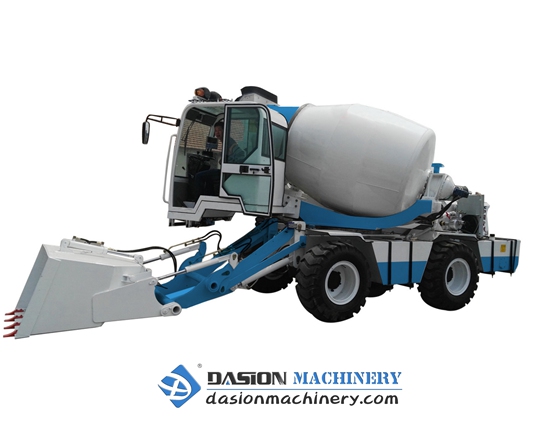

    DS0.5F Self Loading Concrete Mixer
    Rated bucket capacity : 0.17m3
    Rated tank capacity : 0.5m3
    Total weight : 3.5t
    Drum mixing time : 50±0.3s
    Engine rated power : 40kw
    Dimension(L*W*H) : 3660*1820*2800mm
    Share with:
    Product Parameter
    Product Features
    Parameters of DS0.5F Self Loading Concrete Mixer

    No. Items Parameters
    1 Dimension(L*W*H)mm 3660*1820*2800
    2 Axle distance (mm) 2060±15
    3 Wheelbase (mm) 1820±15
    4 Minimum ground clearance (mm) 260±10
    5 Rated bucket capacity (m3) 0.17
    6 Rated tank capacity (m3) 0.5
    7 Total weight (t) 3.5
    8 Boom lifting time (s) 5.5±0.2
    9 Drum mixing time (s) 50±0.3
    10 Minimum turning radius Front wheel outsite 5000±50
    11 Body steering Angle 35°±1°
    12 Climbing angles≤ 20°
    13 Rear bridge swing angle ±12°
    14 Engine Model 490
    Type in-line engine、water-cooled engine、
    four-stroke engine、direct injection engine
    Rated power (kw) 40
    15 Torque converter model 240
    16 Tire model 20.5-16
    17 Drive mode infinitely variable speeds
    18 Setting voltage 24V


    Brief Introduction of DS0.5F Self Loading Concrete Mixer:
    DS0.5F Self Loading Concrete Mixer is an on-site construction vehicle that combine features with concrete batch processing equipment, concrete transport and concrete mixing station. A small concrete station can easily formed by 2 mobile concrete mixer, 1 cement tank and 1 water tank.
    Features of Self Loading Concrete Mixer Truck:
    0
    Self Propelled Concrete Mixing System
    0
    Easy operating control
    0
    High efficiency
    0
    Mixer and Loader joint together perfectly
    0
    One year warranty
    0
    Articulated Steering Mode
