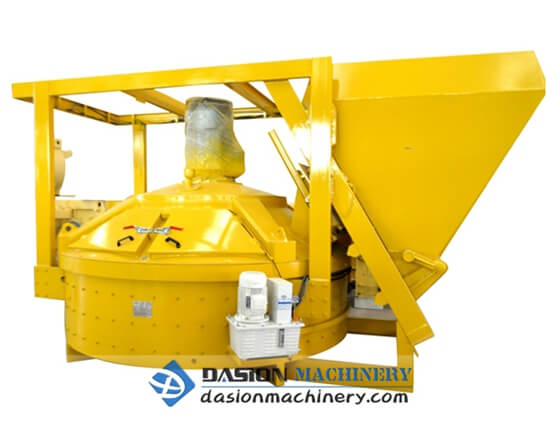

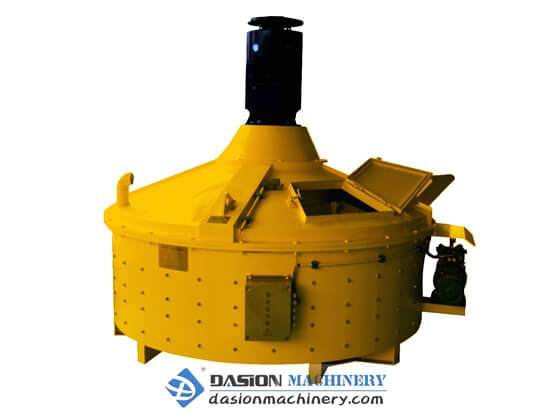

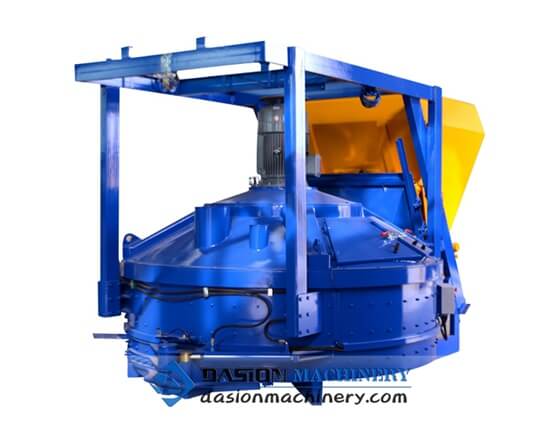

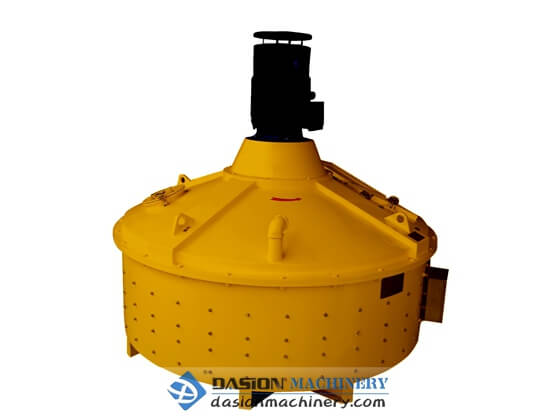

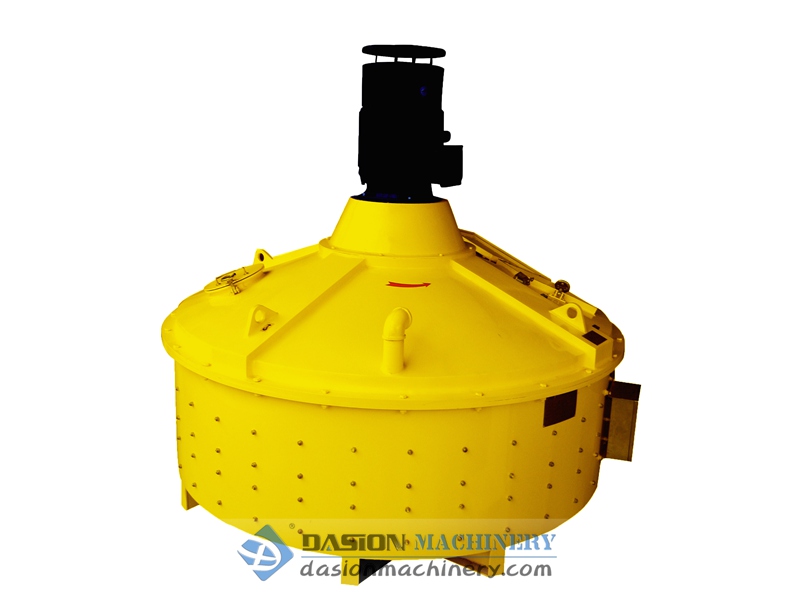

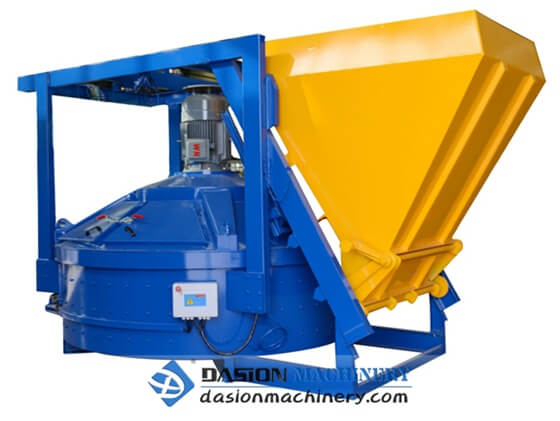

JN Vertical Concrete Mixer

Product Parameter

Product Features

Engineering Case

Product Video

Parameters of JN Vertical-shaft Concrete Mixer

Model	JN330	JN500	JN750	JN1000	JN1500	JN2000	JN2500	JN3000
Discharging Volume (L)	330	500	750	1000	1500	2000	2500	3000
Charging Volume (L)	500	750	1125	1500	2250	3000	3750	4500
Charging Weight (KG)	800	1200	1800	2400	3600	4800	6000	7200
Diameter of Mixing Drum (mm)	1540	1900	2196	2496	2796	3100	3400	3400
Mixing Power (KW)	15	18.5	30	37	55	75	90	110
Discharging Power (KW)	2.2	2.2	2.2	3	3	4	4	4
Weight (KG)	1700	2000	3500	6000	7000	8500	10500	11000
Lifting Power (KW)	4	4	7.5	11	15	18.5	/	/
Bucket Capacity (L)	580	870	1300	1740	2610	3480	/	/
Bucket Capacity (KG)	870	1305	1950	2610	3915	5220	/	/
Lifting Speed (m/s)	0.25	0.25	0.25	0.25	0.25	0.25	/	/

Brief Introduction of JN Vertical-shaft Concrete Mixer:

JN series vertical-shaft planetary concrete mixer is core equipment in concrete batching plant and block & precast industry. They can mix various material evenly, be suitable for mixing high-quality dry concrete.

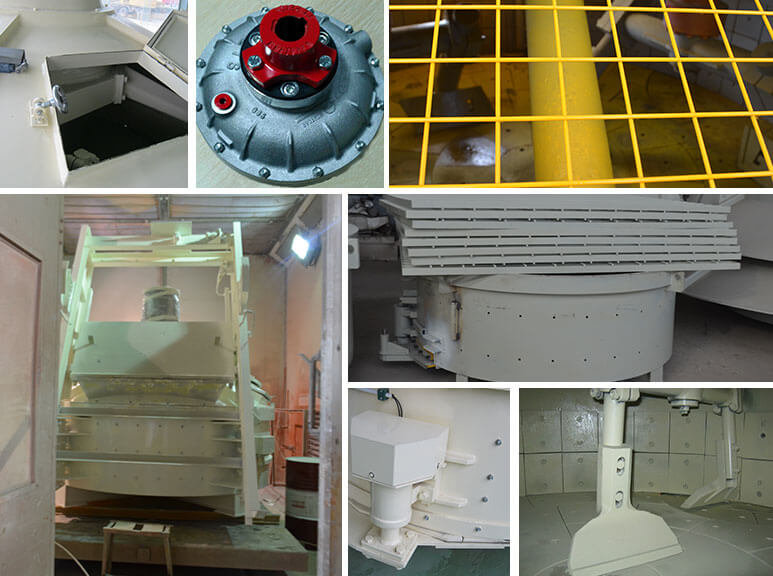

Technical Features of JN Vertical-shaft Concrete Mixer :

1. Adopt combined installation for transmit part and mixing drum, conveniently for assemble and maintain equipment, the concrete never meet transmit part, so there is no leakage problem;

2. The main parts, such as reducer, bearing and oil-seal system, are original imported, reliable in transmission;

3. Blades & linings adopt high chrome wear-proof materials with long working life;

4. Equipped with a mechanical coupling and a hydraulic coupling (option), which can protect the transmission device from overloads and impacts;

5. Adopt rotary planetary concrete mixer blades, be known for complex trajectories (has both revolution and autorotation), has high-efficiency mixing quality;

6. High-sensitive security switches are used in the maintaining door as optional parts;

7. Aggregate bucket can be chosen according to the requirements of customers.

Working Principle of JN Vertical-shaft Concrete Mixer:

Electric motor drive gear reducer, the power source from reducer will drive the mixing blades move rotation, the scraper blades move revolution. The mixing trajectories is complex because of the rotation and revolution working together, the mixer inside has strong mixing motion, so that the mixing efficient is high, mixing quality is equally.

Mixing Video of JN Vertical Shaft Concrete Mixer

Vertical-shaft Concrete Mixer
