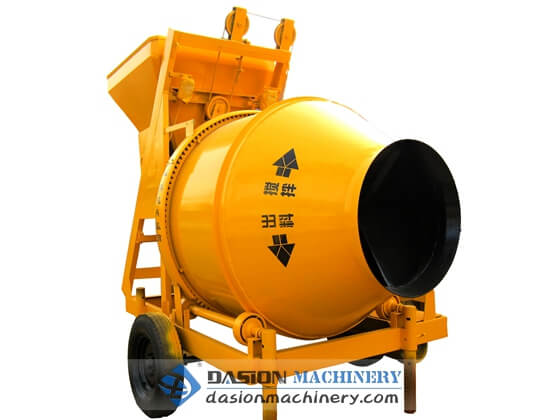

    JZC/JZM Portable Concrete Mixer
    Charging Volume : 480L/560L/720L/800L
    Discharging Volume : 300L/350L/450L/500L
    Mixing Power : 4kw/5.5kw/11kw/DUAL-5.5kw
    Mixing Motor : 4kw/5.5kw/11kw
    Weight : 1200kg/1650kg/1900kg/2800kg
    Max. aggregate size : 60mm/60mm/60mm-80mm/60mm-80mm
    Share with:
    Product Parameter
    Product Features
    Engineering Case
    Product Video
    Technical Parameters Of JZC/JZM Portable Concrete Mixer

    Model JZC300 JZC350 JZC450 JZM500
    Discharging volume 300L(0.3m3) 350L(0.35m3) 450L(0.45m3) 500L(0.5m3)
    Charging volume 480L 560L 720L 800L
    Capacity 6-8m3/h 10~14m3/h 16-18m3/h 18-20m3/h
    Drum rotating-speed 17r/min 14r/min 13r/min 13r/min
    Max. aggregate size 60mm 60mm 60-80mm 60-80mm
    Water feeding precision ≤2% 2% ≤2% ≤2%
    Mixing motor 4kw 5.5kw 11kw dual-5.5kw
    Hoisting Motor 3kw 4.5kw 5.5kw 5.5kw
    Water pump motor 0.55kw 0.55kw 0.75kw 0.75kw
    Tyre spec. 6.50-16 6.50-16 7.50-16 7.50-16
    Max. dragging speed 20 km/h 20 km/h 20 km/h 20 km/h
    Outline Dimension 2260x1990x2750mm 2766x2140x3000 mm 5226x2200x3100mm 5800x2200x3100mm
    Weight 1200kg 1650kg 1900kg 2800kg



    Brief Introduction Of JZC/JZM Portable Concrete Mixer:
    JZC series concrete mixers are self falling type bipyramid reversed discharge concrete mixing machine. The mixing drum is driven by gear ring. In working style, clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging.
    JZC series concrete mixers are applicable to the small or medium construction project, used for the variety of concrete production, mortar and grout. They can also be used in some simple project, such as building, country bridge, and small ready-mix concrete plant.
    Features And Benefits Of JZC/JZM Portable Concrete Mixer:
    0
    Adopt electric motor for power supply.
    0
    Mixing drum is driven through gear ring. Low noise, Low energy consumption, no slip in rainy weather, easily operate.
    0

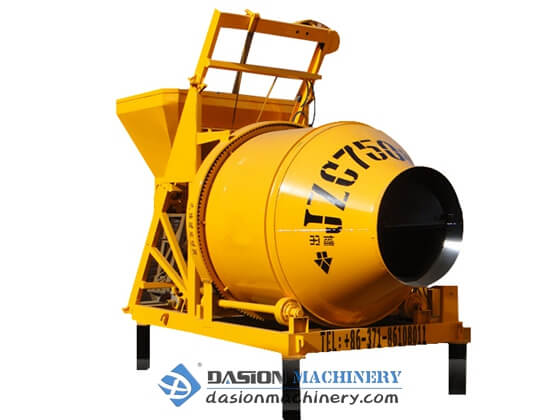

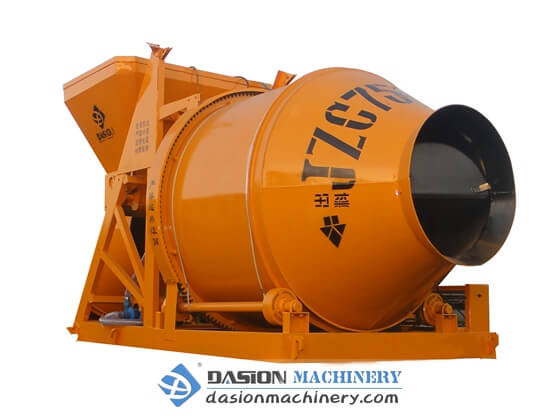

    JZC series concrete mixers are portable concrete mixers with 2 tyres, except JZC750 is fixed concrete mixer.
    0
    Assemble lifting bucket, which mouth is lower than ground, be conveniently for aggregate loading and feeding.
    Working Principle Of JZC/JZM Portable Concrete Mixer:
    0

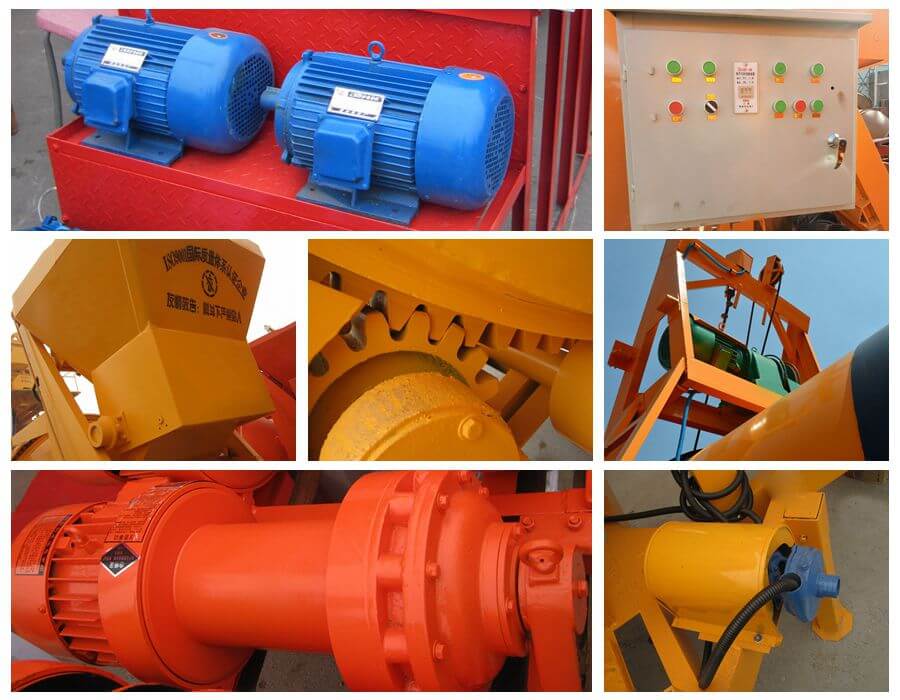

    Assemble gear ring around the external surface of the mixing drum, and the driven-shaft has small gear engages the teeth of the gear ring. Meanwhile, assemble spiral mixing blades on the internal surface of the mixing drum.
    0
    In working style, relying on the drum rotating and inner material own gravity, the drums clockwise rotating for concrete mixing, and the anti-clockwise rotating for concrete discharging.
    0

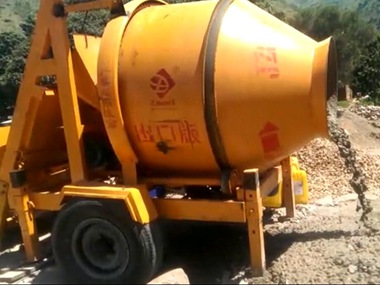

    In non-working style, JZC series concrete mixer can move to other working site by trailer dragging.
