Products
PRODUCTS SEARCH
Quickly find DASION product
.png)

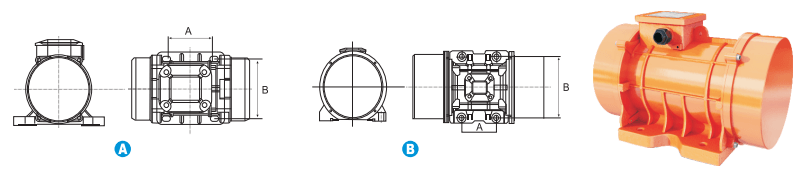

| No. | Model | Force（KN） | Power（KW） | Weight（KG） | Installation Size | |
| A | B | |||||
| 1 | MV40/3 | 0.3 | 0.05 | 4 | 62-74 | 106 |
| 2 | MV60/3 | 0.7 | 0.07 | 4.2 | 62-74 | 106 |
| 3 | MV100/3 | 1 | 0.09 | 4.6 | 62-74 | 106 |
| 4 | MV200/3 | 2 | 0.15 | 6.8 | 62-74 | 106 |
| 5 | MV300/3 | 3 | 0.25 | 9.8 | 90 | 125 |
| 6 | MV400/3 | 4 | 0.27 | 10.3 | 90 | 125 |
| 7 | MV500/3 | 5 | 0.5 | 15.8 | 105 | 140 |
| 8 | MV700/3 | 7 | 0.59 | 16.5 | 105 | 140 |
| 9 | MV800/3 | 8 | 0.7 | 20.6 | 120 | 170 |
| 10 | MV1200/3 | 10 | 0.95 | 21.6 | 120 | 170 |
| 11 | MV1300/3 | 13 | 1.3 | 24.5 | 120 | 170 |
| 12 | MV1600/3 | 16 | 1.54 | 51.6 | 140 | 190 |
| 13 | MV1800/3 | 18 | 1.85 | 52 | 140 | 190 |
| 14 | MV2000/3 | 20 | 2.1 | 51.8 | 140 | 190 |
| 15 | MV2200/3 | 22 | 2.4 | 52.8 | 140 | 190 |
| 16 | MV2300/3 | 23 | 2.4 | 53.6 | 140 | 190 |
| 17 | MV3200/3 | 32 | 2.76 | 96.9 | 155 | 255 |
| 18 | MV4000/3 | 40 | 2.9 | 107 | 155 | 255 |
| 19 | MV5000/3 | 50 | 4 | 112 | 155 | 255 |
| 52 | MV60/3M | 0.7 | 0.08 | 4.5 | 62-74 | 106 |
| 53 | MV100/3M | 1 | 0.1 | 5.1 | 62-74 | 106 |
| 54 | MV200/3M | 2 | 0.13 | 6.8 | 62-74 | 106 |
| 55 | MV50DC-24 | 0.5 | 0.1 | 4.5 | 62-74 | 106 |
| 56 | MV200DC-24 | 2 | 0.16 | 6.5 | 62-74 | 106 |
