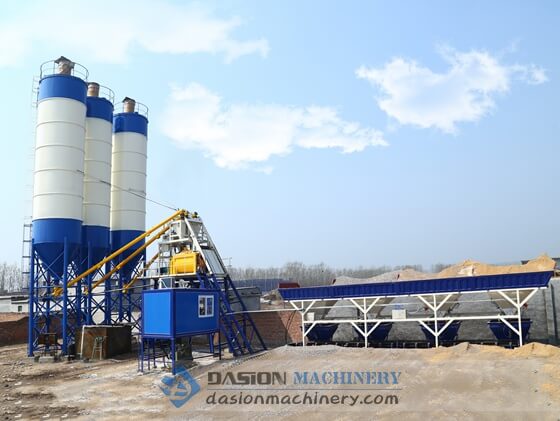

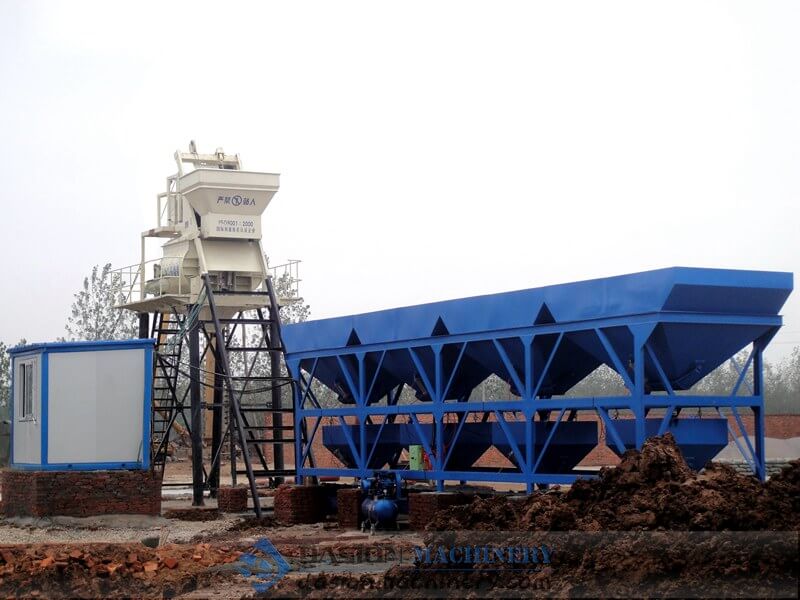

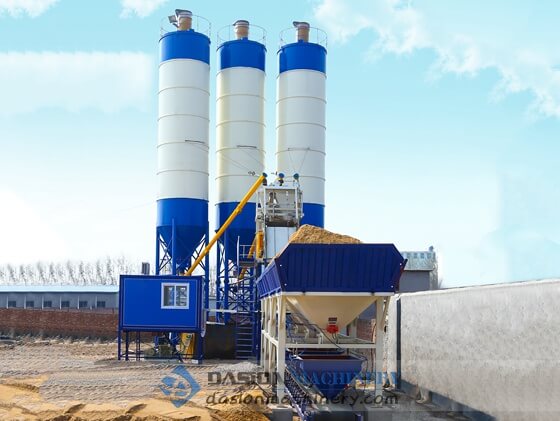

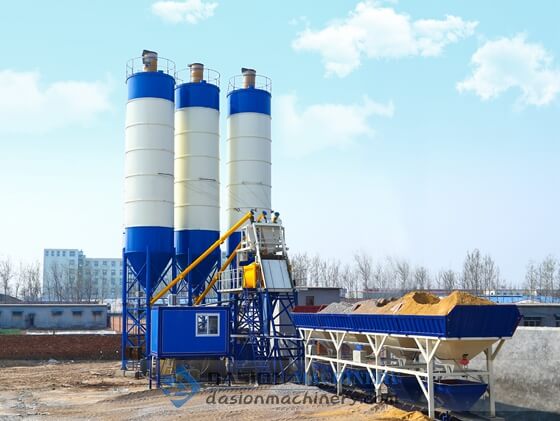

    HZS75 Concrete Batching Plant
    Equipment Type : Bucket Feeding
    Model : HZS75 concrete plant
    Productivity : 75m3/hr
    Warranty : 12 months after erection
    Origin : DASION/CHINA
    After-sale service : Erection & commissioning, operator training
    Share with:
    Product Parameter
    Product Features
    Engineering Case
    Product Video
    Configuration Of HZS75 Concrete Batching Plant

    Model HZS75
    Capacity 75m3/h
    Mixing system Twin-shaft concrete mixer
    Aggregate feeder Bucket (Skip hopper)
    Discharging height 3800mm
    After-sale service Erection & commissioning, operator training
    Warranty 12 months after erection
    Concrete mixer JS1500
    Mixing cycle 72s
    Aggregate batching machine PLD2400
    Weighing system Water, Cement, Additive
    Weighing precision ±1%
    Air system Air compressor, etc
    Control system Type Computer auto-control module (PLC can be optional item)
    Control panel board Buttons, lamps, indicators, etc
    Electric components China CHINT, German SCHNEIDER (option)
    Control room With Air conditioner, ≈6m2
    Documentation Foundation layout, Electrical diagram, Operation manual

    Brief Introduction Of DASION HZS75 Concrete Batching Plant

    DASION HZS75 concrete batching plant (75m3/h) consists of material batching, mixing and electric control system, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete.
    DASION concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.




    Features Of DASION HZS75 Concrete Batching Plant:
    0
    Mixing system: adopt JS series Twin-shaft Concrete Mixer for high quality of mixing effect. Assemble ladder, sidewalk and handrail, easily for worker maintenance;
    0
    Cement system: adopt separated cement silo and screw conveyor for cement storage and feeding, bulk cement pump can be provided based on customers requirement;
    0
    Weighing and control system: adopt new-design of electrical weighing system, can work with computer, SIEMENS PLC, digital display, etc, which will make sure the measurement accurate and timely;
    0
    Air system: adopt high quality of air compressor, air pipe and air cylinder, easy installation and maintenance;
    0
    Aggregate feeding system: adopt Bucket (Skip Hopper), assemble self-locking hoist motor for bucket up and down, to avoid bucket falls down suddenly;
    0
    Concrete discharge height can be design to accommodate truck mixer/concrete pump/skip car.

    Working Principle Of HZS75 Bucket Concrete Mixing Plant:
    Concrete batch plant has 4 main parts: Material feeding, Material measurement, Concrete mixing and whole plant control system.
    The working procedure of automatic control system is
    0
    Turn on control software, login to operation interface;
    0
    Set or access working parameters of concrete production, such as recipe number, concrete grade, slump, total production volume, etc.
    0
    Start production;
    0
    The software/PLC will give signal to each part of the plant, to finish the material feeding, measurement, loading into the concrete mixer, mixing and discharging;
    0
    If there are some problems during production, the software will detect the error and light up alarm lamp on computer screen or indicator display, so that the operator can stop the production till problems solved.
    0
    Regarding to the material feeding, the various of electric motors, butterfly valves and load cells will work automatically according to digital signal;
    0
    High-pressure air system will provide enough driving force for each unloading gates, such as aggregate bins, butterfly valve of scale hoppers, concrete mixer discharging gate, etc.
    0
    The software will control the whole system continuously produce concrete till the set-volume finished production, unless emergency stop or turn to Manual style.
    Shipment of Concrete Batching Plant:
