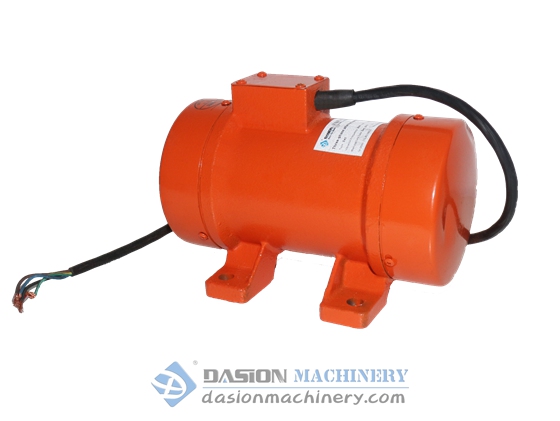

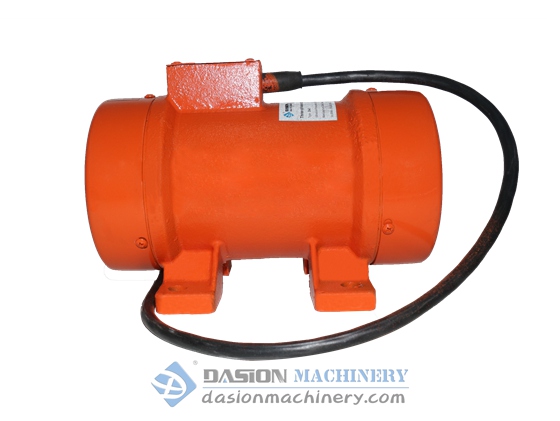

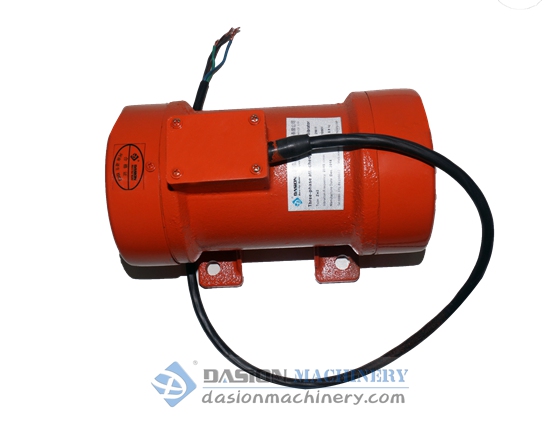

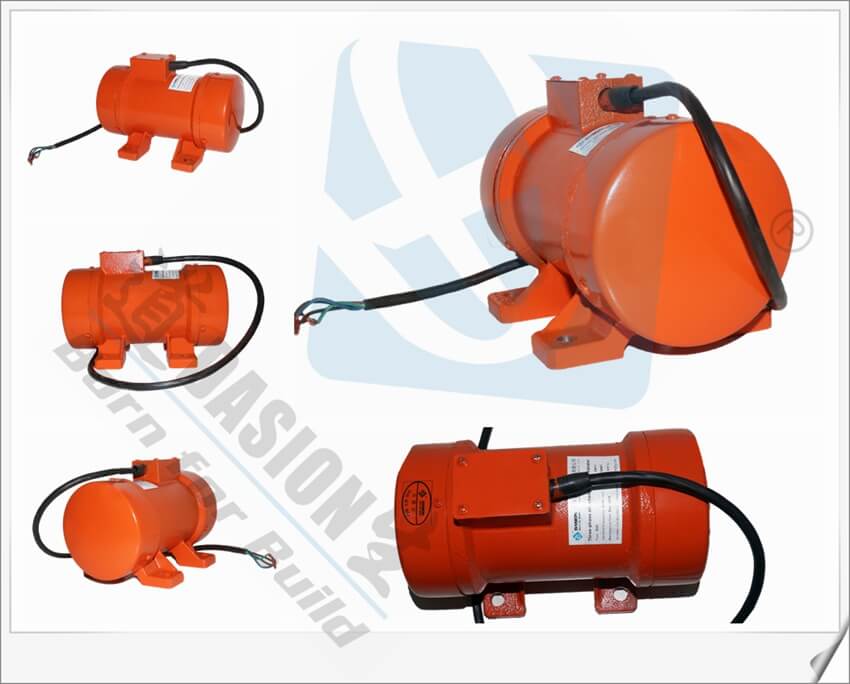

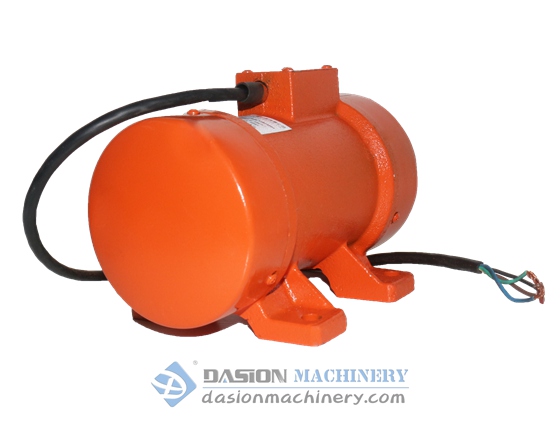

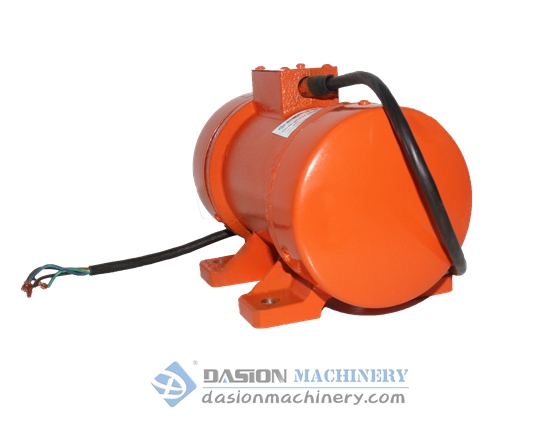

    ZF/ZW Series External Concrete Vibrators
    Force : 0.5-10 kn
    Power : 0.12-2.2 kw
    Weight : 9-38kg
    Share with:
    Product Parameter
    Product Features
    Parameters of ZF/ZW Series External Concrete Vibrators

    No. Model Force(KN) Power(KW) Weight(KG) Installation Size(MM)
    A B
    1 ZF12 0.5 0.12 9 120 110
    2 ZF25/ZW2 2 0.25 11/13 170 160
    3 ZF50 4 0.5 18 170 160
    4 ZF110/ZW5 5 1.1 23/25 190 194
    5 ZF150/ZW7 7 1.5 24/27 190 194
    6 ZF220/ZW10 9/10 2.2 34/38 200 220



    Introduction of ZF/ZW Series External Concrete Vibrators:
    The external vibrators are widely used in the vibration of plastic, semi-plastic, semidry, and dry concrete, suitable tools for the concrete cast of slabs, road surface, ground and roofing in buildings. They can also be used as vibrating source of vibrating apparatus.
    It can continuously operate for a long time.
    Features of ZF/ZW Series External Concrete Vibrators:
    It uses special vibrating motor with unique eccentric structure.
    The exciting force can be adjusted for the construction situation.
