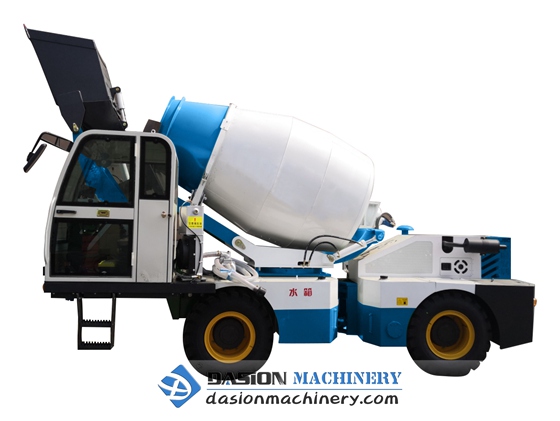

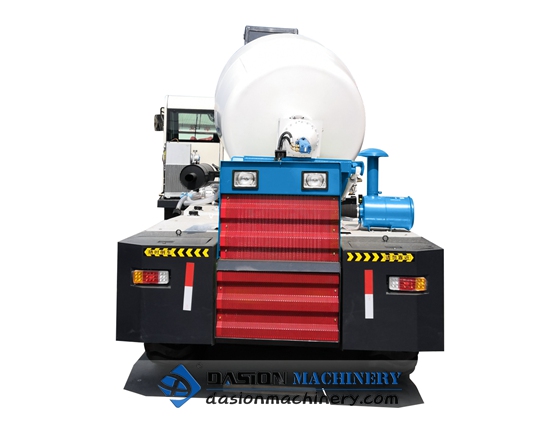

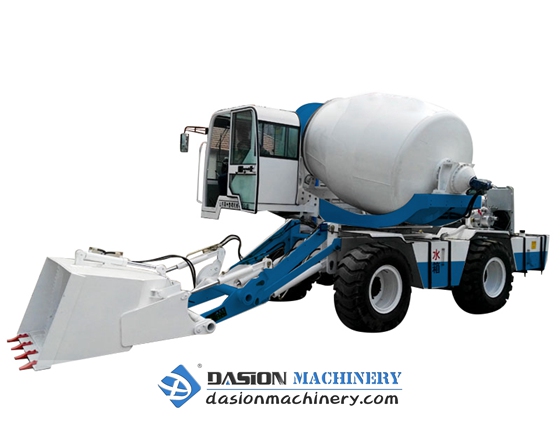

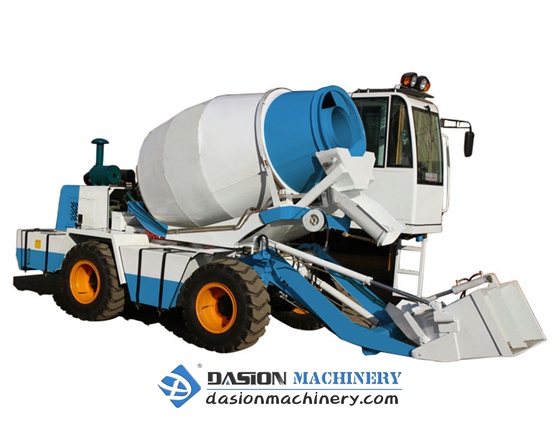

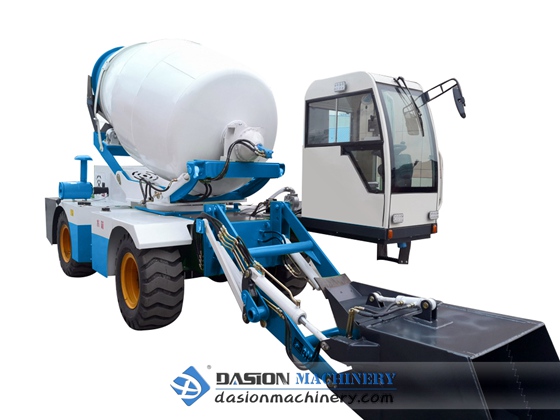

DS1.0F Self Loading Concrete Mixer Truck

Product Parameter

Product Features

Parameters of DS1.0F Self Loading Concrete Mixer Truck

No.	Items		Parameters
1	Dimension(LWH)mm		455022503500
2	Axle distance (mm)		1950±15
3	Wheelbase (mm)		1800±15
4	Minimum ground clearance (mm)		250±10
5	Rated bucket capacity (m3)		0.4
6	Rated tank capacity (m3)		1
7	Total weight (t)		4.2
8	Boom lifting time (s)		5.5±0.2
9	Drum mixing time (s)		50±0.3
10	Minimum turning radius	Front wheel outsite	5000±50
11	Body steering Angle		25°±1°
12	Climbing angles≤		20°
13	Rear bridge swing angle		±12°
14	Engine	Model	55
		Type	in-line engine、water-cooled engine、 four-stroke engine、direct injection engine
		Rated power (kw)	55
15	Torque converter model		265
16	Tire model		20.5/70-16
17	Drive mode		four-wheel drive
18	Setting voltage		24V

Brief Introduction of DS1.0F Self Loading Concrete Mixer Truck

DS1.0F Self Loading Concrete Mixer Truck is an on-site construction vehicle that combine features with concrete batch processing equipment, concrete transport and concrete mixing station.
A small concrete station can easily formed by 2 mobile concrete mixer, 1 cement tank and 1 water tank.

Brief Introduction of DS1.0F Self Loading Concrete Mixer Truck:

DS1.0F Self Loading Concrete Mixer Truck is an on-site construction vehicle that combine features with concrete batch processing equipment, concrete transport and concrete mixing station.
A small concrete station can easily formed by 2 mobile concrete mixer, 1 cement tank and 1 water tank.

Features of DS1.0F Self Loading Concrete Mixer Truck:

Auto Weighting Scale system (English / Russian / Spanish Version) - Optional

Drum Bottom lifting up for increasing speed of discharging concrete

Water Pump

Auto adding Lubricating Oil system - Optional

Air-condition - Optional

Articulated Steering Mode
