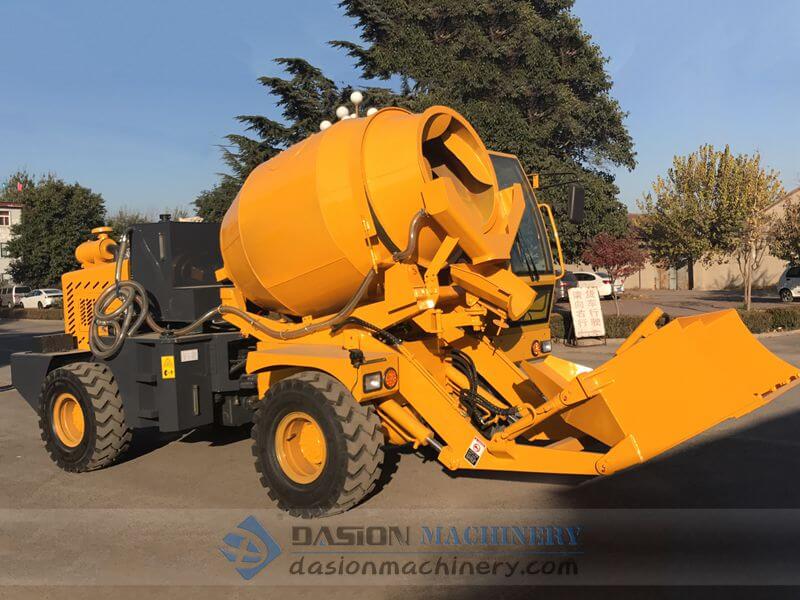

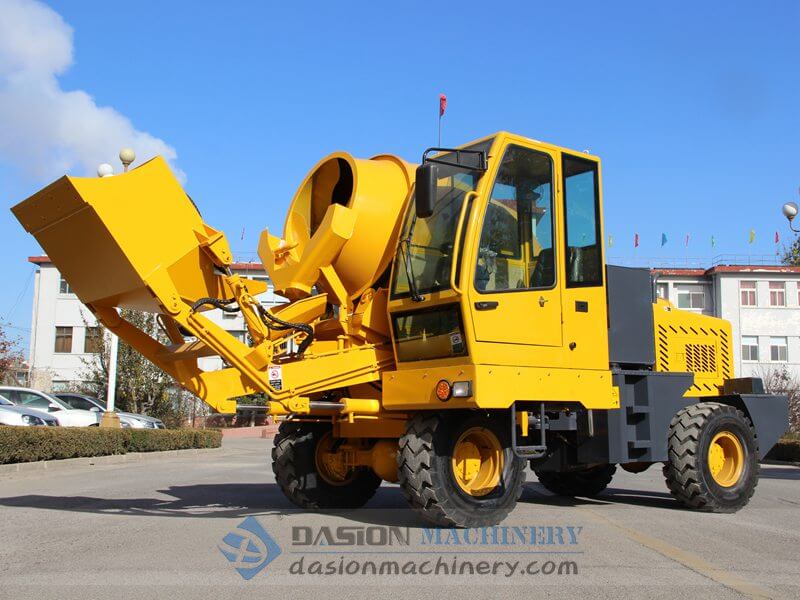

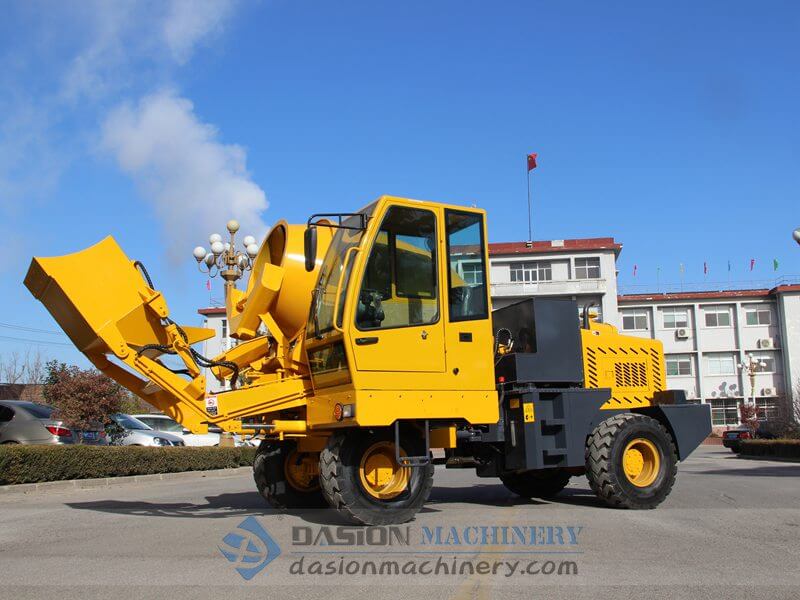

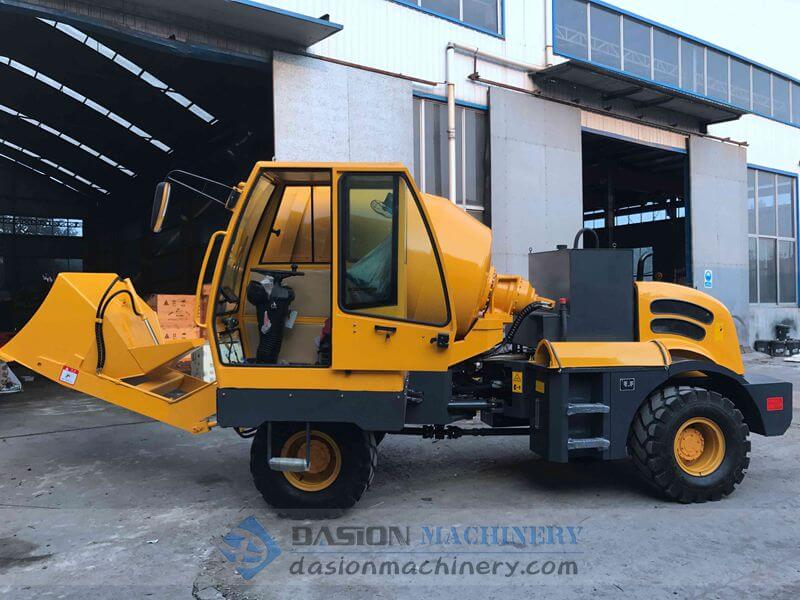

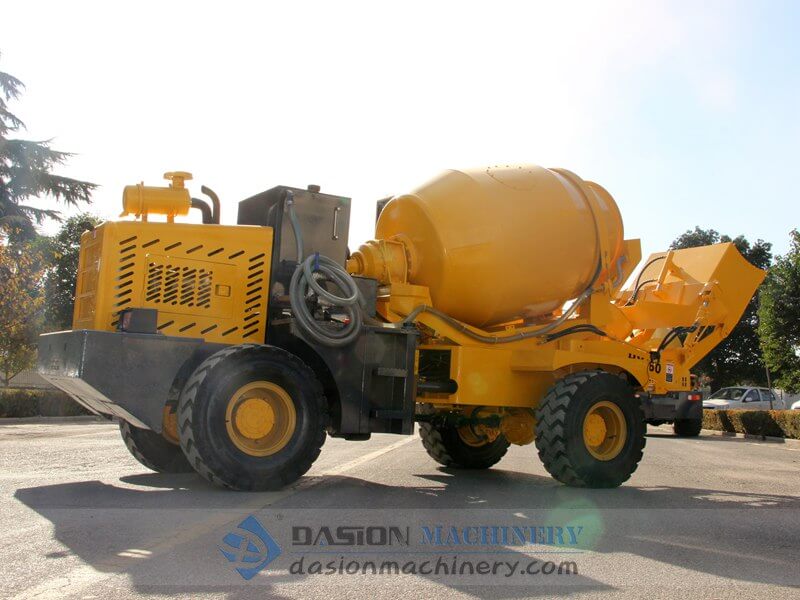

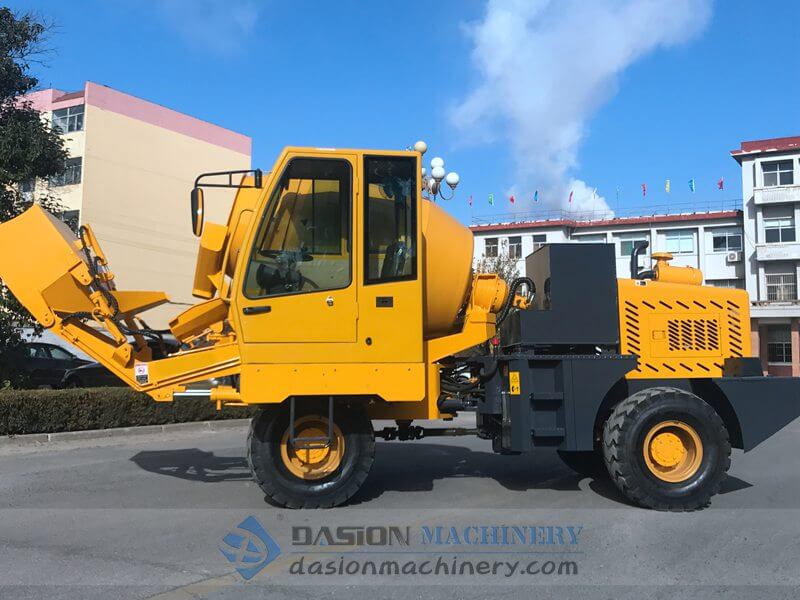

    DS1.5 Self Loading Concrete Mixer
    Net weight : 5500kg
    Brake : Air brake
    Cooling type : Water Cooling
    Drum full capacity : 2.2cbm
    Loader bucket capacity : 0.4cbm
    Overall size : 6180*2270*2626mm
    Share with:
    Product Parameter
    Product Features
    Parameters of DS1.5 Self Loading Concrete Mixer

    Name Item Spec
    Overall machine Net weight 5500kg
    Overall size 6180*2270*2626mm(3434mm)
    Transmission Full Hydraulic
    4WD
    Brake Air brake
    Chassis Off-road
    Tread 1600mm
    Wheelbase 2500mm
    Loader bucket Capacity 0.4cbm
    Control Hydraulic
    Tilt Angle 30%
    Speed High speed 0-25KM/H
    Low speed 0-9KM/H
    Tyre Model 20.5/70-16 steel tyre
    Engine Type Yunnei 4102
    Rated Power/RPM 60KW
    Cylinder 4
    Starter Electric
    Cooling type Water Cooling
    Mixing Drum Drum full capacity 2.2cbm
    Drum work capacity 1.6cbm
    Bank angle 16°
    Chute Swing Angle ≥60°
    Angle control Hydraulic
    Size 100CM




    Brief Introduction of DS1.5 Self Loading Concrete Mixer Truck:


    DS1.5 self loading concrete mixer truck is an on-site construction vehicle that combine features with concrete batch processing equipment, concrete transport and concrete mixing station.
    Self loading concrete mixer combines the features of self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.
    Features of Self Loading Concrete Mixer Truck:
    0
    Self Propelled Concrete Mixing System
    0
    Easy operating control
    0
    High efficiency
    0
    Mixer and Loader joint together perfectly
    0
    One year warranty
    0
    One directions 270 degree discharge Angle
    0
    Articulated Steering Mode
