    Diesel Engine Poker Concrete Vibrator
    Share with:
    Product Parameter
    Product Features
    Parameters of Diesel Engine Poker Concrete Vibrator

    Type Freq. (HZ) Amplitude (mm) Poker dia. (mm)  Flexible shaft dia. (mm)  Hose dia. (mm)  Power (kw)  Revolution (r/min) Diesel consumption (g/Rs-hr)  Weight (kg)
    ZNC35 225 0.8 36 10 30 1.47 2600 245 70
    ZNC50 200 1 51 13 36 1.47 2600 245 72
    ZNC70 200 1.2 68 13 36/46 1.47 2600 245 75

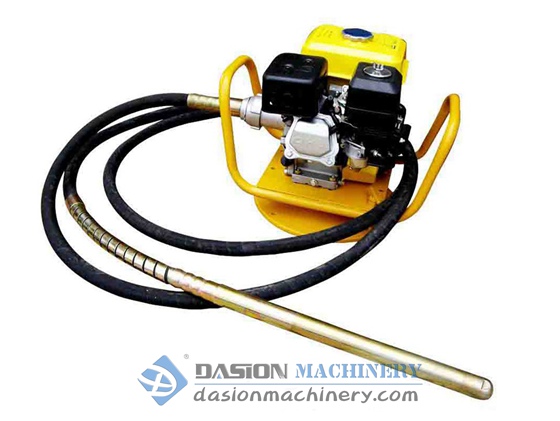

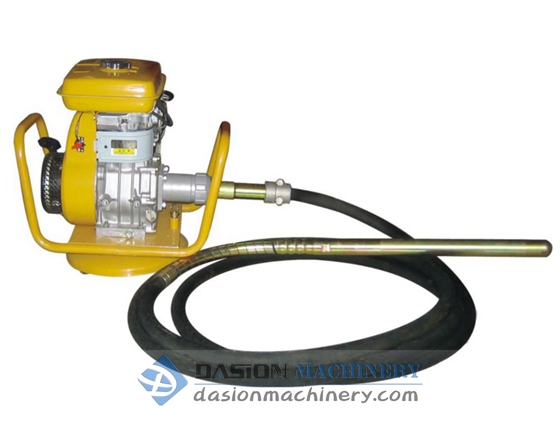

    Brief Introduction of Diesel Engine Poker Concrete Vibrator:
    The diesel driven flexible shaft planetary poker vibrator is widely used in the vibration of various plastic, semidry and dry concrete in the construction. It is suitable for concrete cast-in-site of various bridges, tunnels, building foundation, precast units, beams and columns in remote districts, especially an indispensable tool in various concrete construction sites where there is no electricity or in the condition of power cut.
    Features of Diesel Engine Poker Concrete Vibrator:
    The poker uses double oil-seals with a high sealing performance. The diesel engine features low diesel consumption, easy operation, convenience maintenance, stable running and one engine with multifunction.
